UltraLox Aluminum Railing Panel

Shop Now
Easy Installation

UltraLox rails uses a hidden fastener system for quick and easy installation. No welding or riveting required.

Durable Finish

Durable high quality textured powder coated finish. Avaliable in black, bronze, and white. Meets AAMA 2604 specifications.

15 Year Warranty

UltraLox products are backed by a 15 year warranty.

Preassembled

 UltraLox railing panels are preassembled and ready for installation. UltraLox railing systems are manufactured using their patented UltraLox Interlocking machine.

6 ft. Panel Square Top
6 ft. Panel Victorian Top

8 ft. Panel Square Top

8 ft. Panel Victorian Top

Color Options

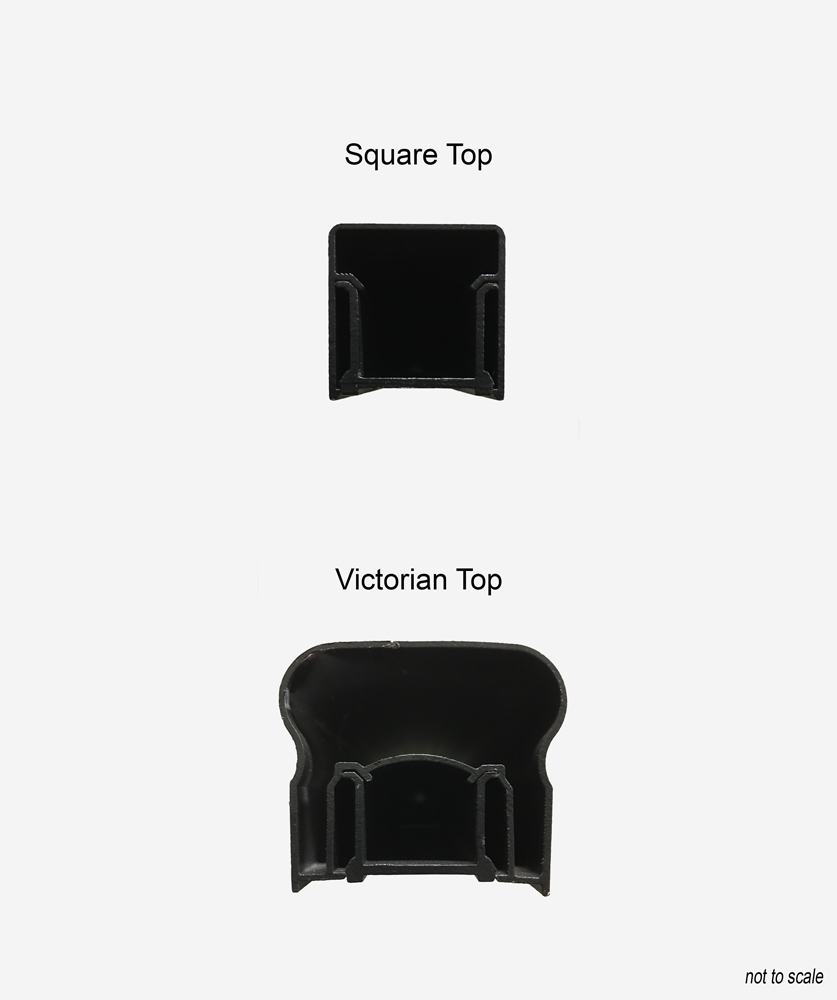

Top Rail Profile

Overview

Powder coated all aluminum railing panel by LIW Rail and Fence LLC. Available in black, bronze or white AAMA 2604 compliant textured powder coated finishes. These panels uses UltraLox interlocking technology and is pre-assembled by LIW Rail and Fence LLC. These panels uses a hidden fastener system for easy installation, no welding or riveting required. UltraLox products are engineered, tested and approved in accordance with ICC-ES AC273 building codes and is backed by a 15-year limited warranty.

Each panel is available in 6’ or 8’ sections. We offer the option of Square or Victorian top rail snaps. Picket colors can be changed independently of rail colors in order to create unique color combinations. Each Panel includes 4x mounting clips, 16x #8×3/4 self-drilling screws, top rail snap (square or Victorian) and bottom rail snap.

Post kits are sold separately.

Specifications

Dimensions

Recommended install height: 42″

  • Actual Height
    • Square Top: 38-1/2″
    • Victorian Top: 39-3/16″
  • Actual Length
    • 6 ft. Panel: 69-7/16″
    • 8 ft. Panel: 91-5/16″
  • Width
    • Square Top: 1-1/2″
    • Victorian Top: 2-1/2″
  • Picket Spacing: 3-7/8″
  • Picket dimensions: 1/2 by 3/4 by 35-11/16 inches
Weight
  • 6 ft. Panel
    • Square Top: 13.75 lbs.
    • Victorian Top: 15 lbs.
  • 8 ft. Panel
    • Square Top: 17.5 lbs.
    • Victorian Top: 20 lbs.
Included with Each Panel
  • 4x Mounting Clips
  • 16x #8×3/4 tek screws
  • Top rail snap (Square or Victorian)
  • Bottom rail snap
