UltraLox™ Aluminum Rails

Powder coated preassembled high-quality aluminum railing products and architectural railing systems for commercial and residential projects.

Order Now
Durable Finish

Durable high quality textured powder coated finish. Avaliable in black, bronze, and white. Meets AAMA 2604 specifications.

Easy Installation

UltraLox rails uses a hidden fastener system for quick and easy installation. No welding or riveting required.



15 Year Warranty

UltraLox products are backed by a 15 year warranty.

Preassembled

 UltraLox railing panels ships preassembled and ready for installation. UltraLox railing systems are manufactured using their patented UltraLox Interlocking machine.

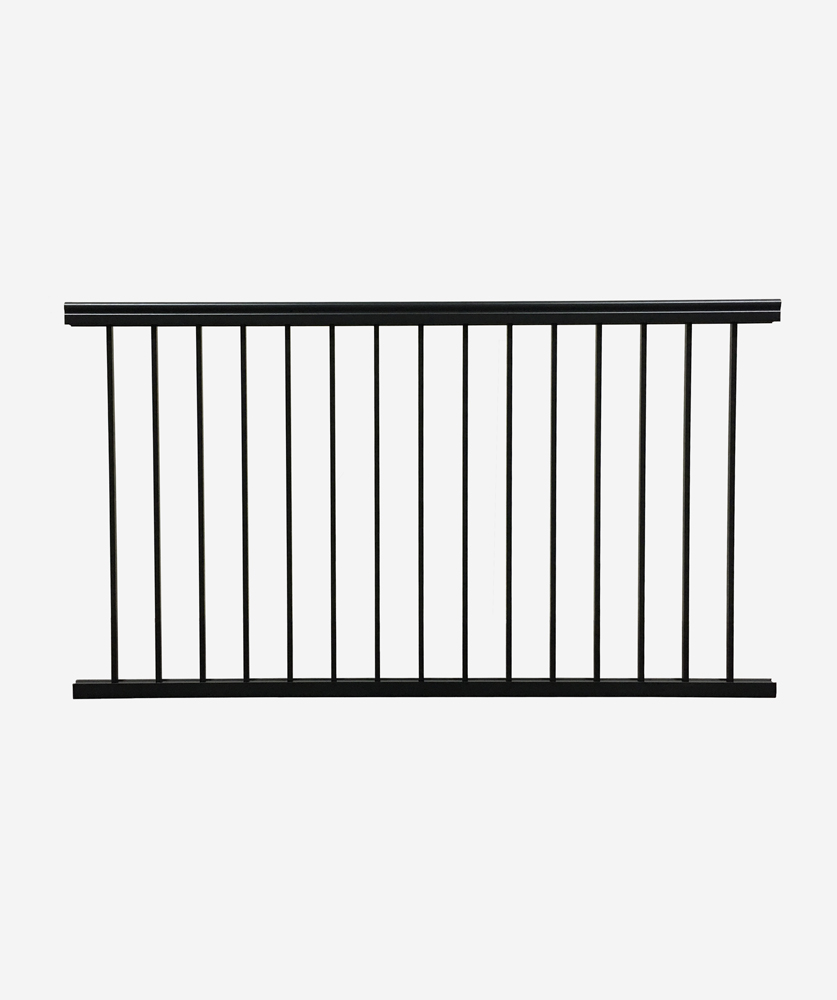

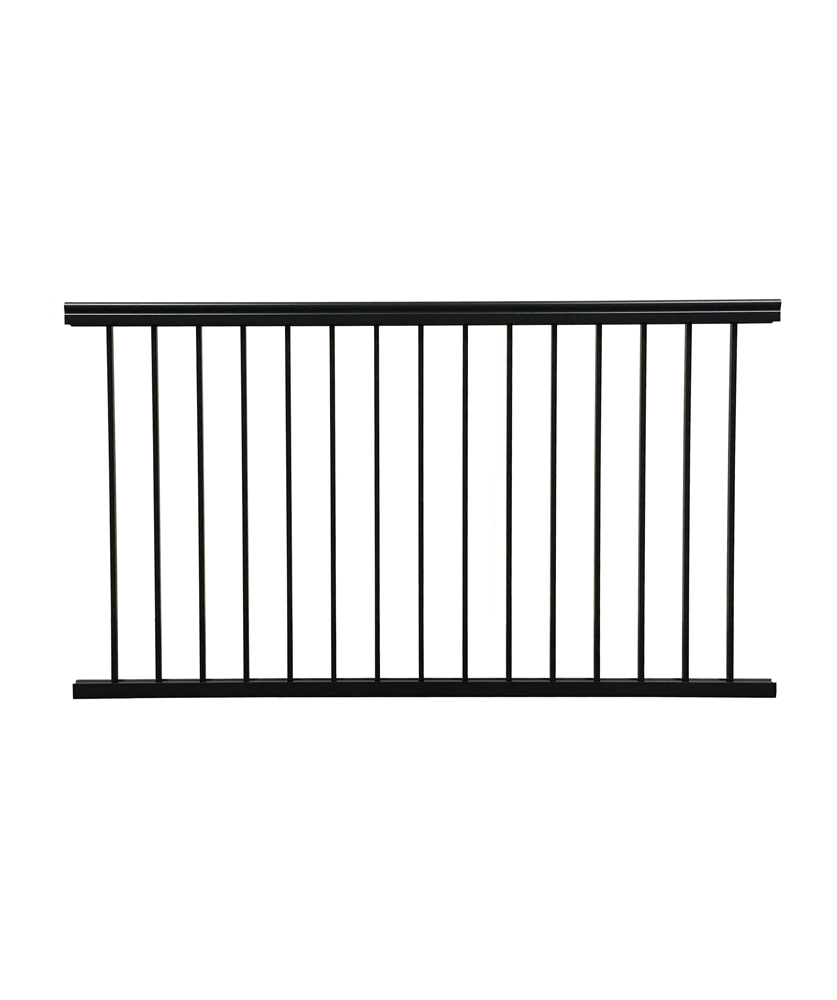

6ft Victorian Top

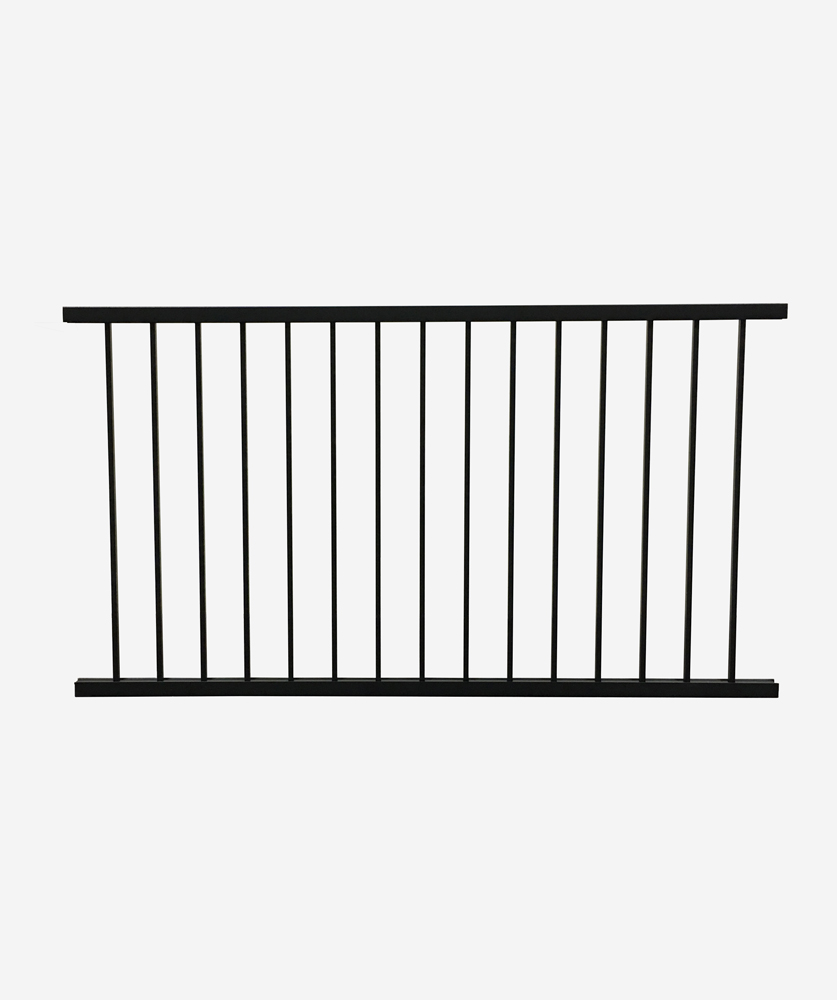

6ft Square Top

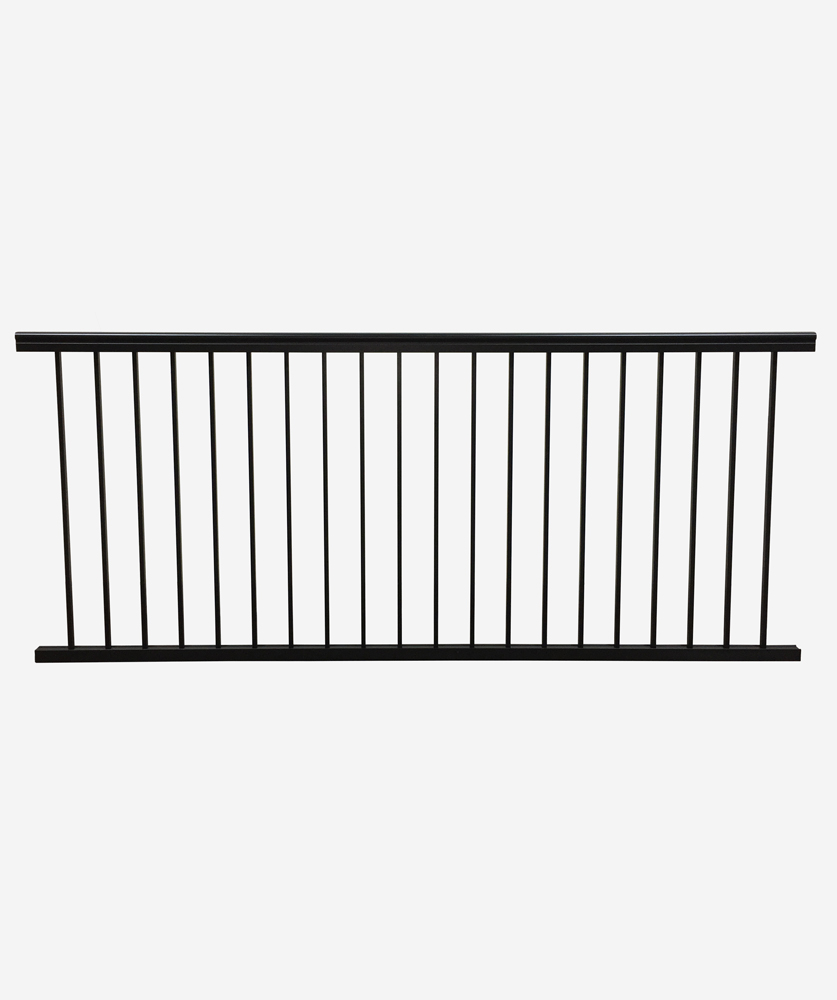

8ft Victorian Top

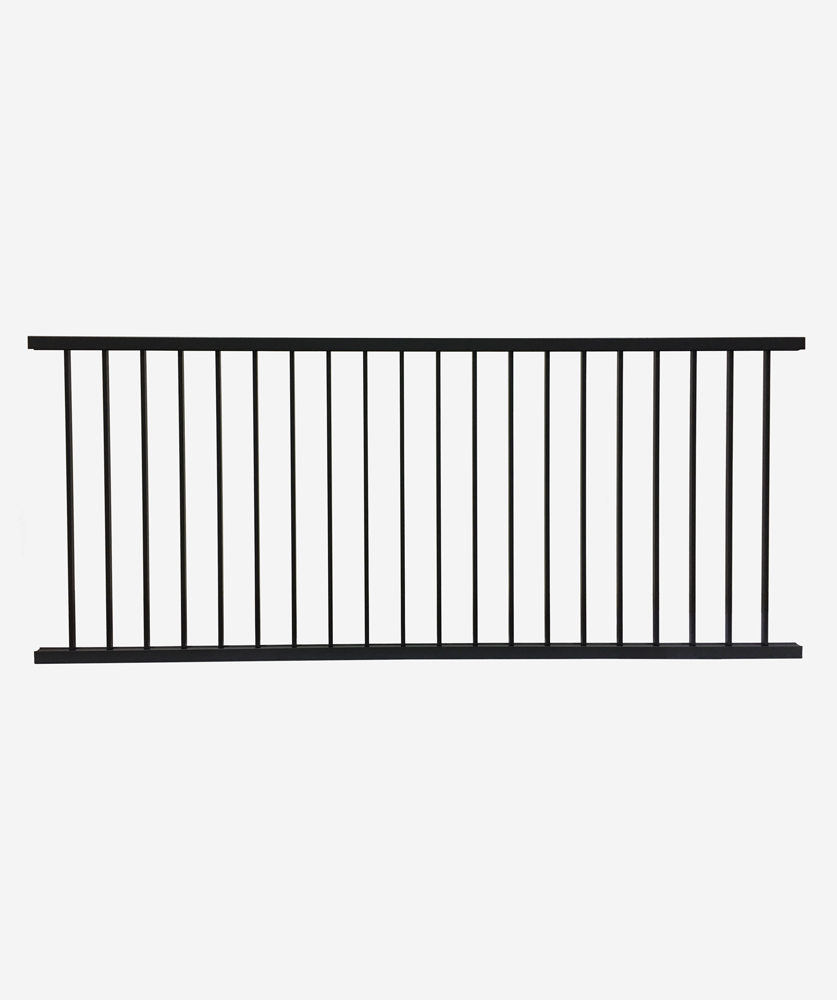

8ft Square Top

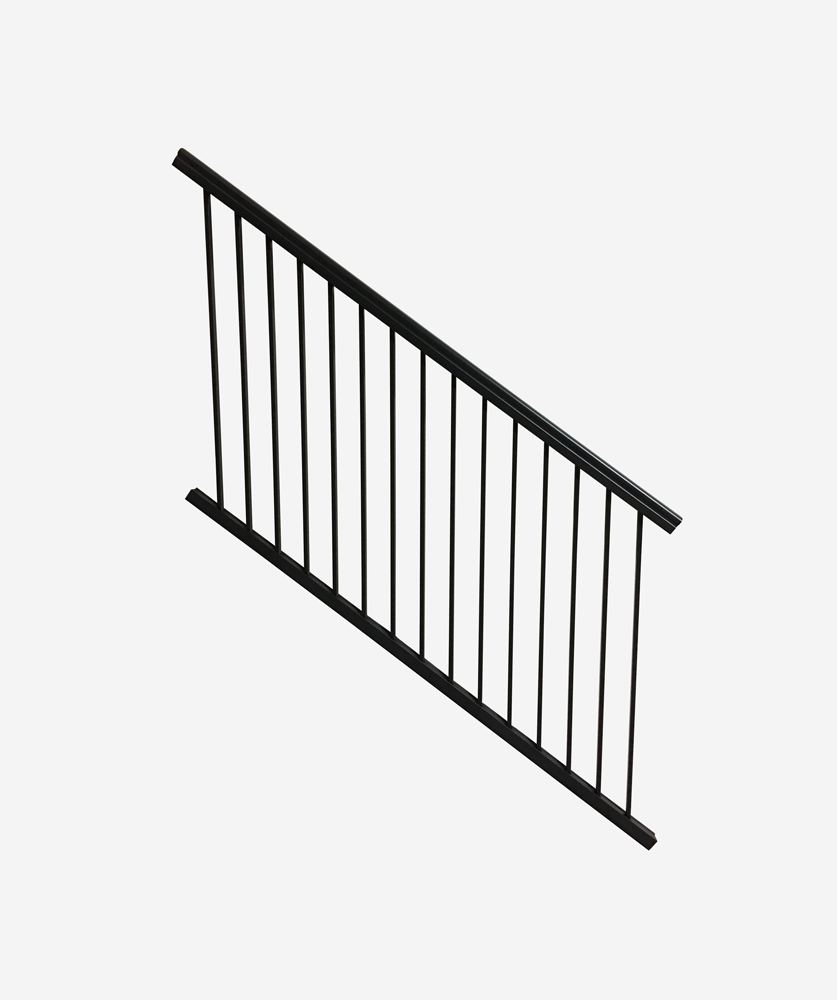

6ft Stair Victorian Top

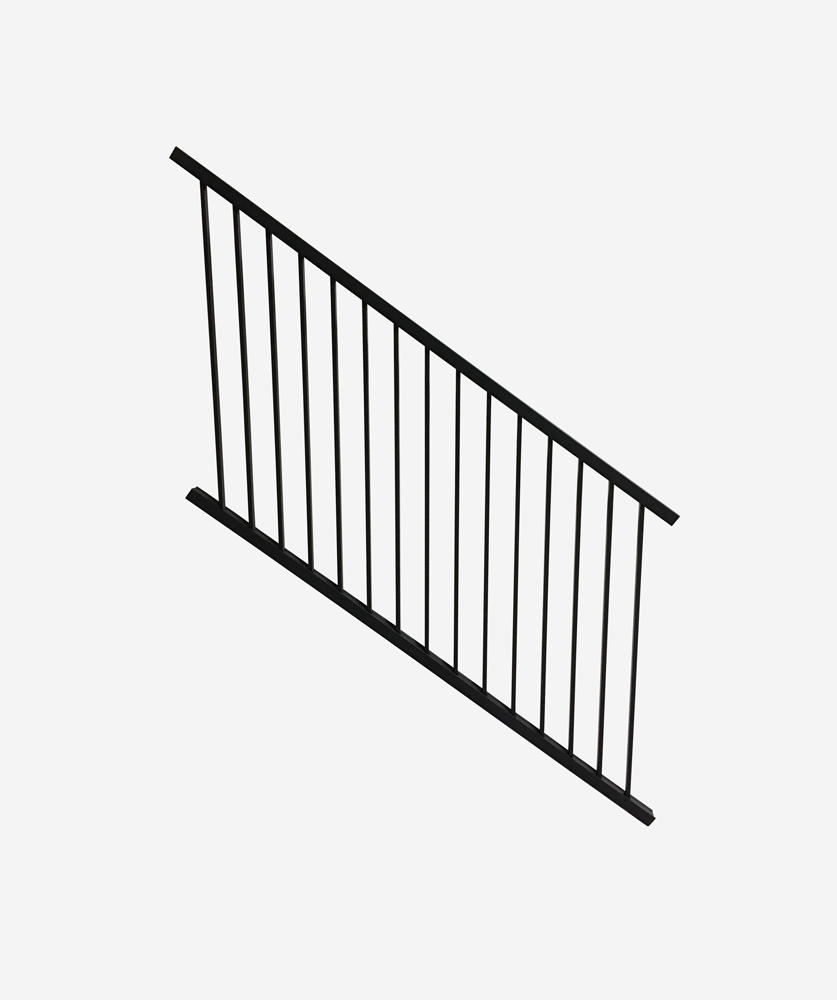

6ft Stair Square Top

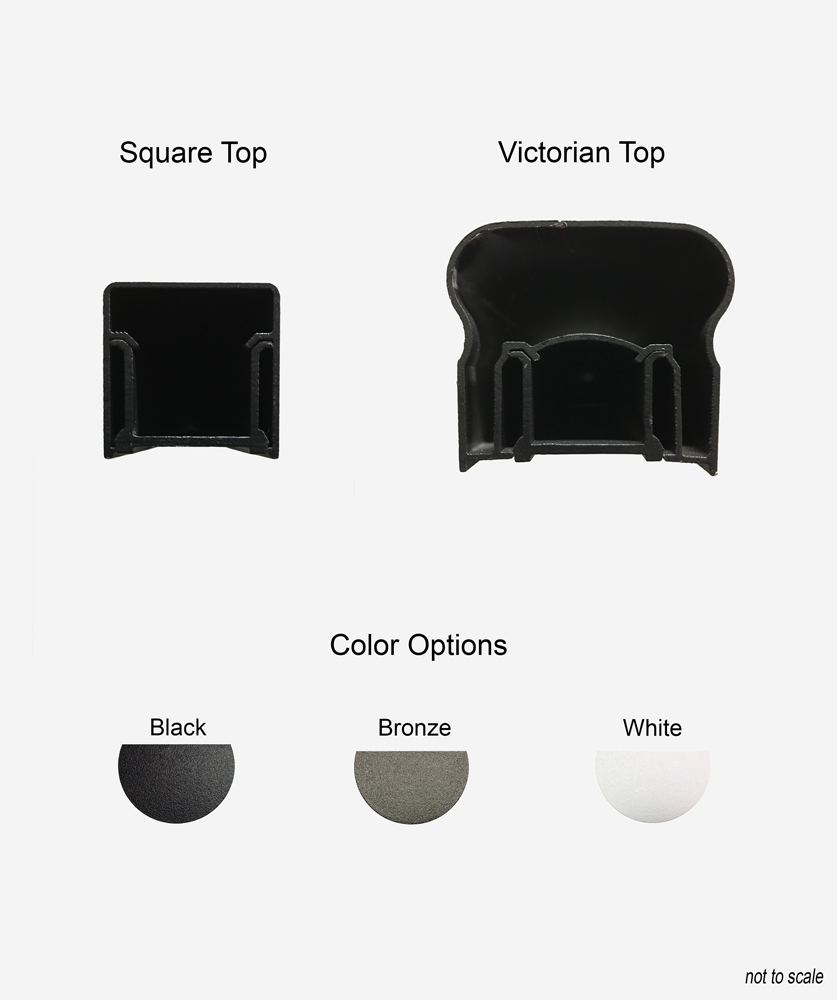

Style & Color Options

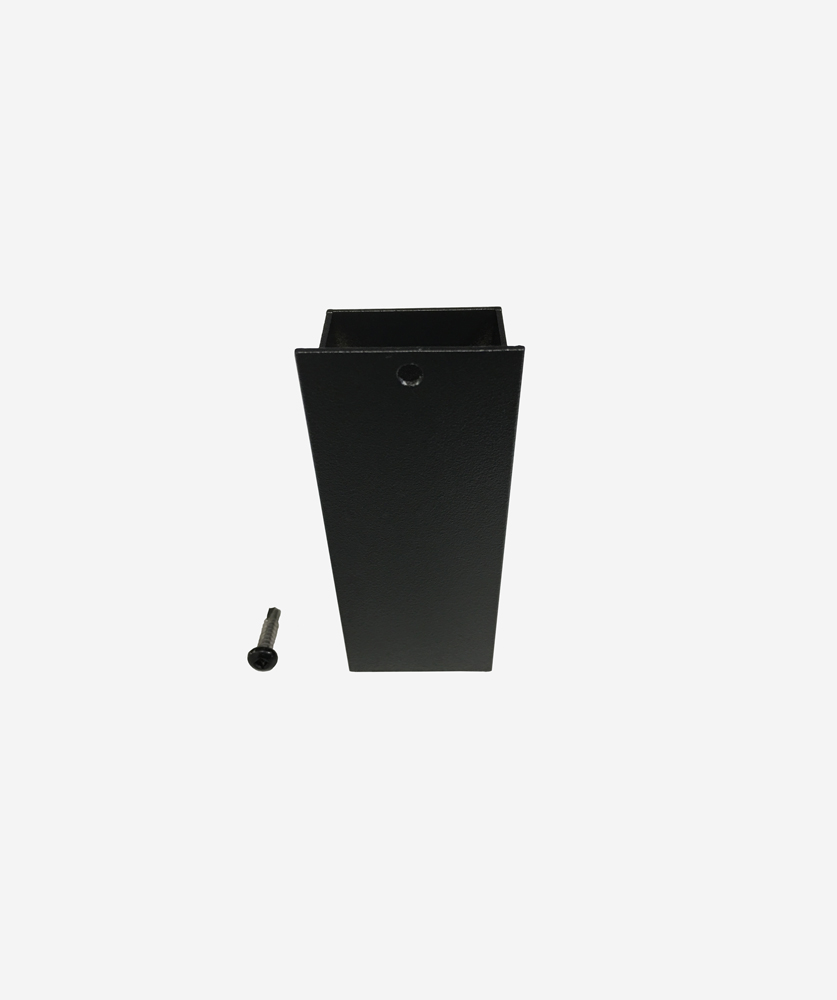

Support Leg

Post Kit

Rail Clip Installation Jig

Touch Up Paint

Overview

Powder coated all aluminum railing panel by LIW Rail and Fence LLC. Available in black, bronze or white AAMA 2604 compliant textured powder coated finishes. These panels uses UltraLox interlocking technology and is pre-assembled by LIW Rail and Fence LLC. These panels uses a hidden fastener system for easy installation, no welding or riveting required. UltraLox products are engineered, tested and approved in accordance with ICC-ES AC273 building codes and is backed by a 15-year limited warranty.

Each panel is available in 6’ or 8’ sections. Stair panels are available in 6′ sections. We offer the option of Square or Victorian top rail snaps. Picket colors can be changed independently of rail colors in order to create unique color combinations. Post kits are sold separately. Each post kit includes an aluminum post with base plate, cap and vinyl base plate cover. We ship all posts with the base plate premounted. UltraLox recommends 5/16″ x 4″ fasteners for surface installation. Please note that this product can only be shipped via freight due to ground shipping size restrictions. However, we offer local pick up for customers located in the DC metro area.

Accessories:

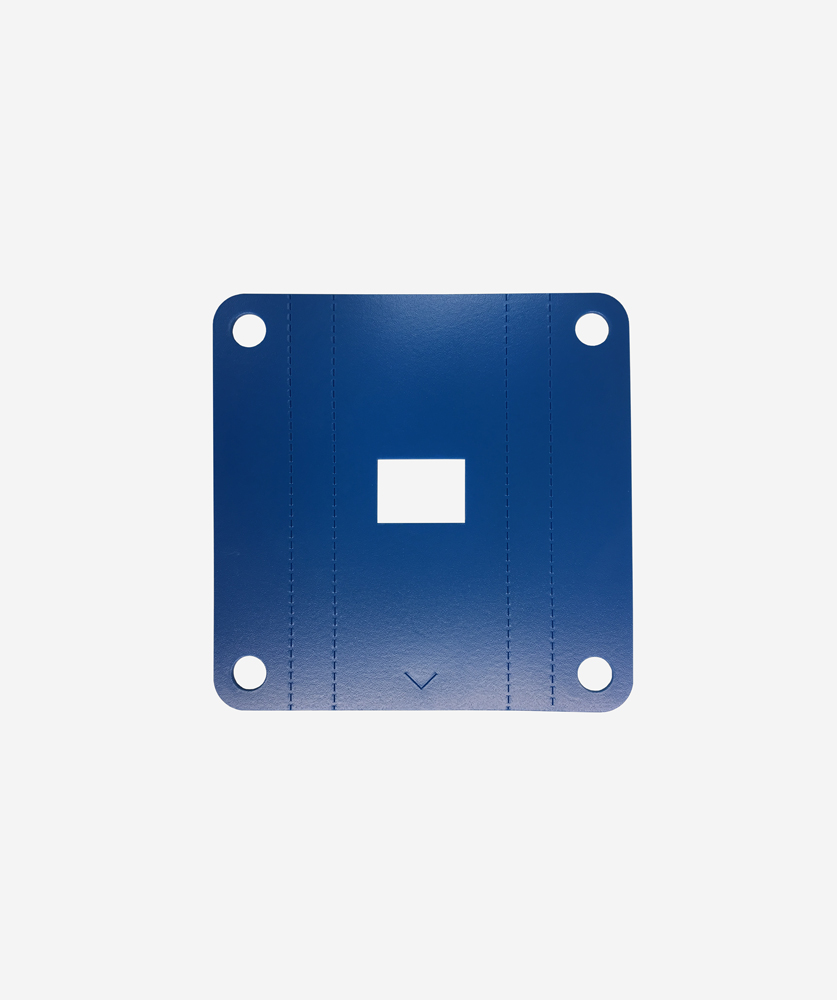

  • Rail Clip Jig
    • For UltraLox straight railing panel installation.This product is highly recommended for quick installation. For use when attaching lower rail clips to post. Can also be used to line up mounting holes when attaching base plate to installation surface. Each rail clip Jig is reusable. We include 1 jig with each order made using this page. Additional rail clip jigs can also be purchased.

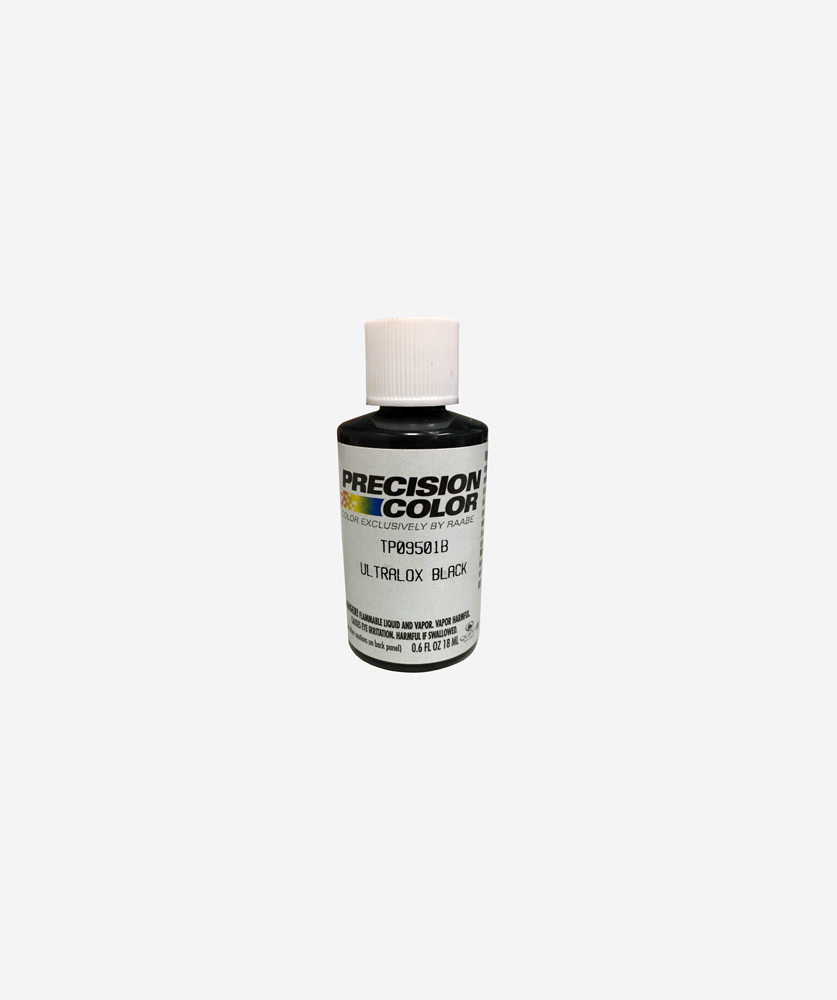

  • Touch Up Paint
    • For use with UltraLox railing systems. Available in black, bronze and white. This paint can be used on scratches, blemishes, or edges after cutting. This paint is color matched to the selected UltraLox powder coated finish. Each bottle contains 0.6 fl oz of paint.

Additional information:

Orders are processed within 1-2 weeks. Large orders may require additional processing time. Our post quantity recommendation is based on the quantity of rail panels + 1, if stair panels are included then the recommendation is based on the total quantity of all panels + 2. Please note that the amount of post required can vary by project and the actual quantity of posts required may be different from our recommendation.

Specifications

Rail Panel Specifications:

  • Recommended finished height : 42”
  • Picket dimensions: 1/2 x 3/4 x 35-11/16 in
  • Picket spacing: 3-7/8″
  • Rail snaps dimensions:
    • Square: Width: 1-1/2″, Height: 1-1/2″
    • Victorian: Width: 2-1/2″, Height: 2-1/4″
  • Each kit includes:
    • 6′ or 8′ aluminum rail panel
    • 4x mounting clips
    • 16x #8×3/4 TEK screws
    • Top rail snap (Square or Victorian)
    • Bottom rail snap

Stair Panel Specifications:

  • Recommended finished height : 42”
  • Stair Angle: 37°
  • Picket dimensions: 1/2 x 3/4 x 37-1/4 in
  • Picket spacing: 3″
  • Rail snaps dimensions:
    • Square: Width: 1-1/2″, Height: 1-1/2″
    • Victorian: Width: 2-1/2″, Height: 2-1/4″
  • Each kit includes:
    • 6′ stair panel
    • 4x stair mounting clips
    • 16x #8×3/4 TEK screws
    • Top rail snap (Square or Victorian)
    • Bottom rail snap

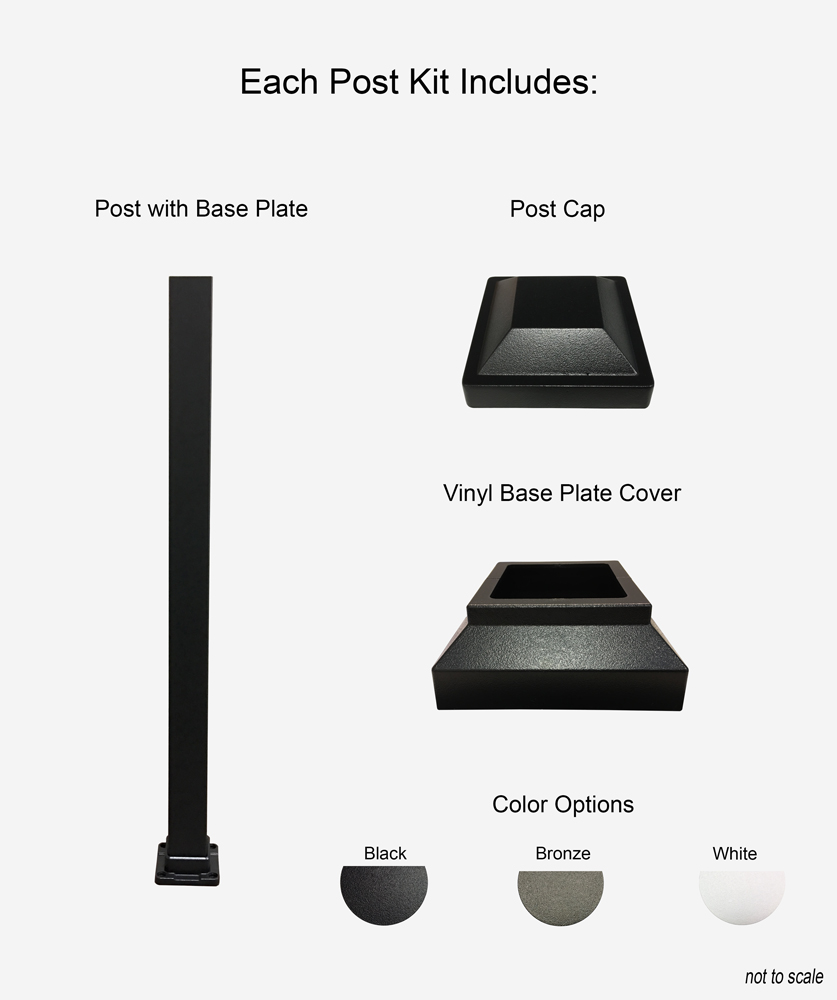

Post Kit Specifications:

  • Each kit includes post, base plate, cap, and vinyl base plate cover.
  • Post Height with Base Plate:
    • With Cap: 45″
    • Without Cap: 44-1/4″
  • Base Plate: 5″ x 5″ x 9/16″
  • Cap: 3-1/4″ x 3-1/4″ x 1-1/8″
  • Vinyl base plate cover: 5-1/4″ x 5-1/4″ x 2-1/8″
  • Mounting screws/anchors are not included.
