UltraLox Aluminum Stair Railing Panel
Easy Installation
UltraLox rails uses a hidden fastener system for quick and easy installation. No welding or riveting required.
Durable Finish
Durable high quality textured powder coated finish. Avaliable in black, bronze, and white. Meets AAMA 2604 specifications.
15 Year Warranty
UltraLox products are backed by a 15 year warranty.
Preassembled
UltraLox railing panels are preassembled and ready for installation. UltraLox railing systems are manufactured using their patented UltraLox Interlocking machine.
6 ft. Stair Panel Square Top

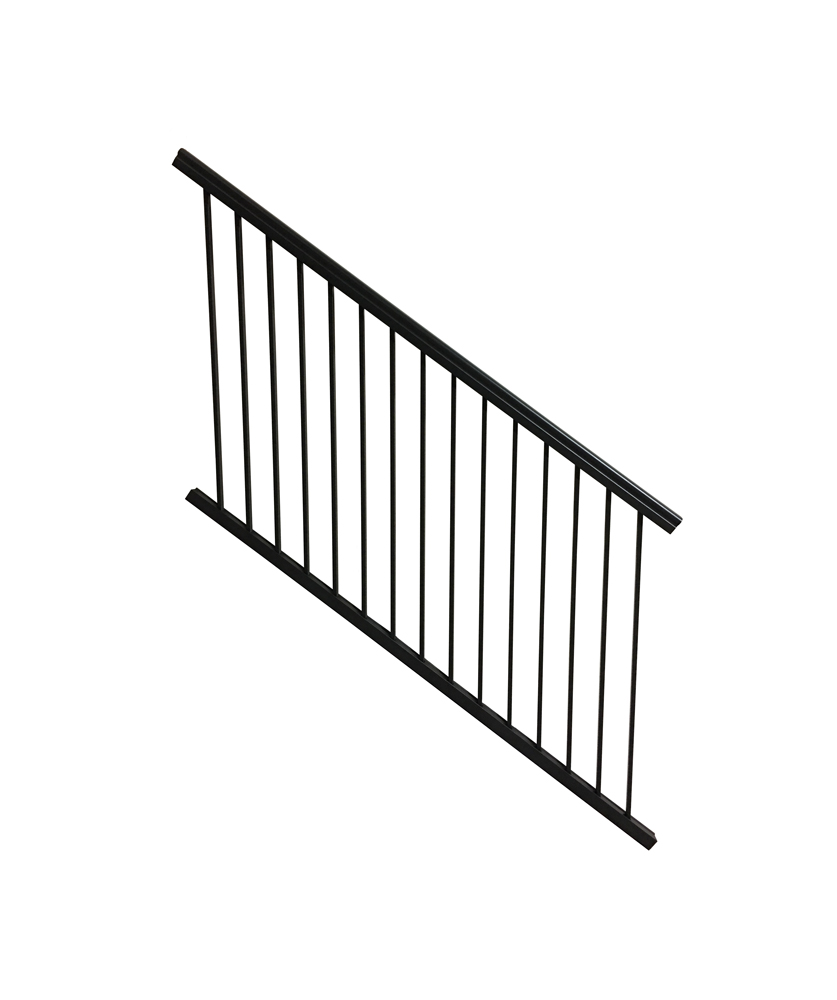

6 ft. Stair Panel Victorian Top
Color Options
Top Rail Profile
Overview
Powder coated all aluminum stair railing panel by LIW Rail and Fence LLC. Available in black, bronze or white AAMA 2604 compliant textured powder coated finishes. These panels uses UltraLox interlocking technology and is pre-assembled by LIW Rail and Fence LLC. These panels uses a hidden fastener system for easy installation, no welding or riveting required. UltraLox stair panels have a 37 degree angle, but it can be adjusted to work with various stair angles. UltraLox products are engineered, tested and approved in accordance with ICC-ES AC273 building codes and is backed by a 15-year limited warranty.
Each panel is available in 6’ sections. We offer the option of Square or Victorian top rail snaps. Picket colors can be changed independently of rail colors in order to create unique color combinations. Each stair panel includes 4x mounting clips, 16x #8×3/4 self-drilling screws, top rail snap (square or Victorian) and bottom rail snap.
Post kits are sold separately.
Specifications
Dimensions
Recommended install height: 42″
Stair Angle: 37°
- Height (Flat)
- Square Top: 33-1/16″
- Victorian Top: 33-3/4″
- Estimated Height (37°)
- Square Top:~40-1/2″
- Victorian Top: ~41-1/16″
- Length (Rail Cover Snap)
- 6 ft. Panel: 69-7/16″
- Width
- Square Top: 1-1/2″
- Victorian Top: 2-1/2″
- Picket Spacing: 3″
- Picket dimensions: 1/2 by 3/4 by 37-1/4 inches
Weight
- 6 ft. Panel
- Square Top: 11.25 lbs.
- Victorian Top: 13.45 lbs.
Included with Each Panel
- 4x Stair Mounting Clips
- 16x #8×3/4 tek screws
- Top rail snap (Square or Victorian)
- Bottom rail snap
